Unprecedented detail of intact neuronal receptor offers blueprint for drug developers

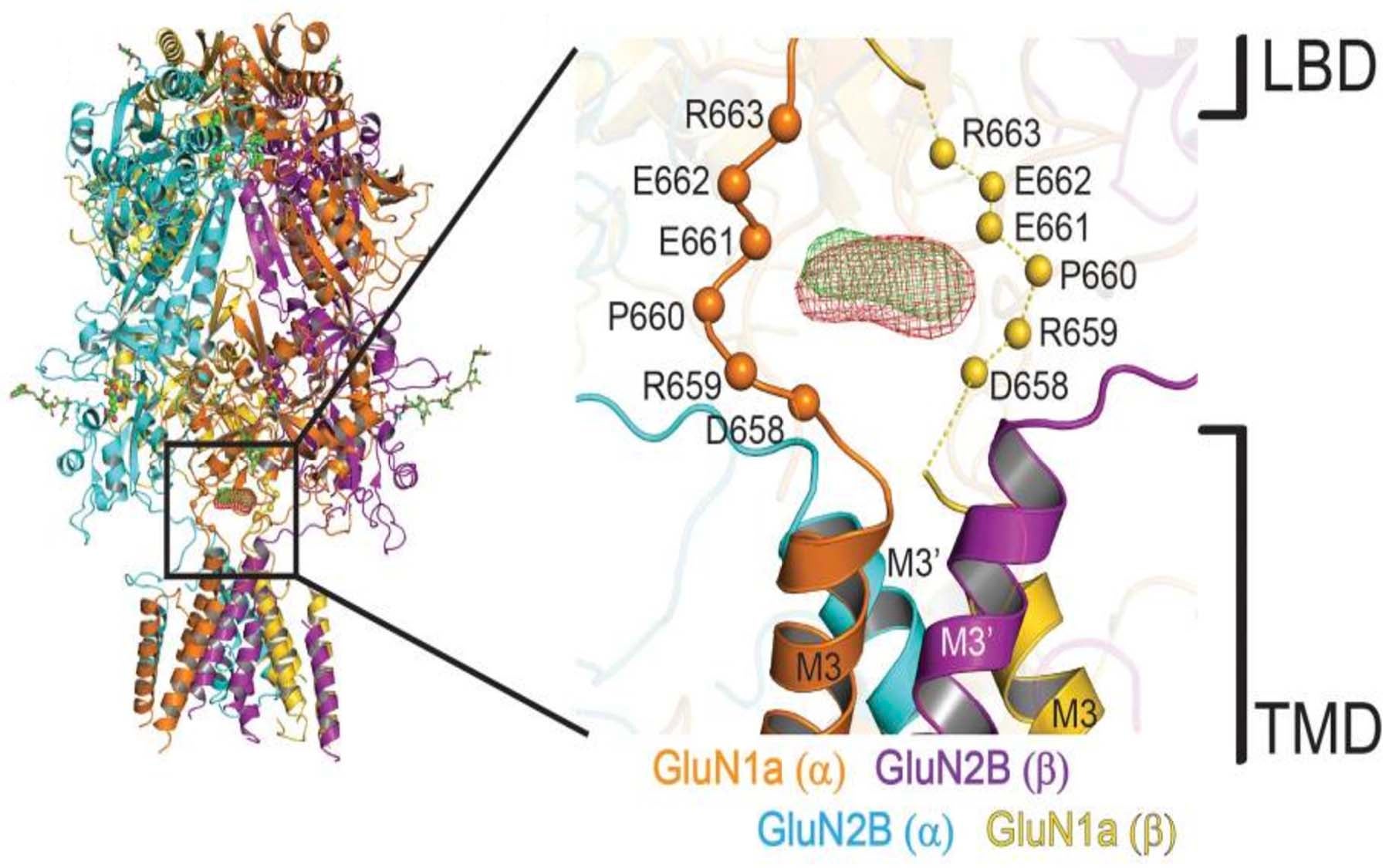

GluN1a/GluN2B NMDA receptors calcium-binding
Putative calcium binding site at the extracellular vestibule.
Print Friendly, PDF & Email

NMDA receptor malfunction is implicated in Alzheimer’s, Parkinson’s, depression, schizophrenia, autism, and stroke

Cold Spring Harbor, NY — Biologists at Cold Spring Harbor Laboratory (CSHL) report today that they have succeeded in obtaining an unprecedented view of a type of brain-cell receptor that is implicated in a range of neurological illnesses, including Alzheimer’s disease, Parkinson’s disease, depression, schizophrenia, autism, and ischemic injuries associated with stroke.

The NMDA receptor is a massive multi-subunit complex. CSHL researchers found that it looks much like a hot air balloon. The upper, balloon-like portion of the structure is found outside the cell and responds to chemical messengers. Those messengers act like a key to unlock the lower portion of the receptor. This lower portion, corresponding to the basket of the hot air balloon, is embedded in the neuron’s membrane. It creates a narrow channel that allows ions, or electrically charged atoms, to flow into the cell. These many subunit interactions are potential targets for drug discovery.

The team’s atomic-level picture of the intact NMDA (N-methyl, D-aspartate) receptor should serve as a template and guide for the design of therapeutic compounds.

The NMDA receptor is a massive multi-subunit complex that integrates both chemical and electrical signals in the brain to allow neurons to communicate with one another. These conversations form the basis of memory, learning, and thought, and critically mediate brain development. The receptor’s function is tightly regulated: both increased and decreased NMDA activities are associated with neurological diseases.

Despite the importance of NMDA receptor function, scientists have struggled to understand how it is controlled. In work published today in Science, CSHL Associate Professor Hiro Furukawa and Erkan Karakas, Ph.D., a postdoctoral investigator, use a type of molecular photography known as X-ray crystallography to determine the structure of the intact receptor. Their work identifies numerous interactions between the four subunits of the receptor and offers new insight into how the complex is regulated.

“Previously, our group and others have crystallized individual subunits of the receptor—just fragments—but that simply was not enough,” says Furukawa. “To understand how this complex functions you need to see it all together, fully assembled.”

For such a large complex, this was a challenging task. Using an exhaustive array of protein purification methods, Furukawa and Karakas were able to isolate the intact receptor. Their crystal structure reveals that the receptor looks much like a hot air balloon. “The ‘basket’ is what we call the transmembrane domain. It forms an ion channel that allows electrical signals to propagate through the neuron,” explains Furukawa.

An ion channel is like a gate in the neuronal membrane. Ions, small electrically charged atoms, are unable to pass through the cell membrane. When the ion channel “gate” is closed, ions congregate outside the cell, creating an electrical potential across the cell membrane.

When the ion channel “gate” opens, ions flow in and out of the cell through the channel pores. This generates an electrical current that sums up to create pulses that rapidly propagate through the neuron. But the current can’t jump from one neuron to the next. Rather, the electrical pulse triggers the release of chemical messengers, called neurotransmitters. These molecules traverse the distance between the neurons and bind to receptors, such as the NMDA receptor, on the surface of neighboring cells. There, they act much like a key, unlocking ion channels within the receptor and propelling the electrical signal across another neuron and, ultimately, across the brain.

The “balloon” portion of the receptor that Furukawa describes is found outside the cell. This is the region that binds to neurotransmitters. The structure of the assembled multi-subunit receptor complex, including the elusive ion channel, helps to explain some of the existing data about how NMDA receptors function. “We are able to see how one domain on the exterior side of the receptor directly regulates the ion channel within the membrane,” says Furukawa. “Our structure shows why this particular domain, called the amino-terminal domain, is important for the activity of the NMDA receptor, but not for other related receptors.”

This information will be critical as scientists work to develop drugs that control the NMDA receptor. “Our structure defines the interfaces where multiple subunits and domains contact one another,” says Furukawa. “In the future, these will guide the design of therapeutic compounds to treat a wide range of devastating neurological diseases.”

Written by: Jaclyn Jansen, Science Writer | publicaffairs@cshl.edu | 516-367-8455


Funding

Print Friendly, PDF & Email

This work was supported by the National Institutes of Health, a Mirus Research Award, and the Robertson Research Fund of Cold Spring Harbor Laboratory.

Citation

Print Friendly, PDF & Email

“Crystal structure of a heterotetrameric NMDA receptor ion channel” appears online in Science on May 30, 2014. The authors are Erkan Karakas and Hiro Furukawa. The paper can be obtained online at: http://www.sciencemag.org
